Black ST201

Vega, BP Radio, Brionvega, Brion & Pajetta; Milano, Lissone (MI)

Data
Forum
Pictures
Collections

  • Year
  • 1969
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 96116

 Technical Specifications

  • Number of Tubes
  • 1
  • Number of Transistors
  • 26
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Line plus power jack, mostly with battery or storage battery / 125; 160; 220 / 12 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Black ST201 - Vega, BP Radio, Brionvega,
  • Shape
  • Miscellaneous shapes - described under notes.
  • Dimensions (WHD)
  • 300 x 240 x 310 mm / 11.8 x 9.4 x 12.2 inch
  • Notes

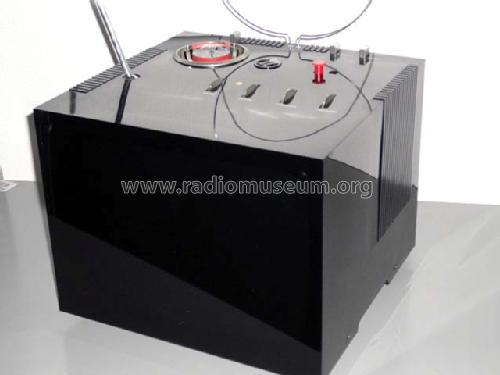

  • Designer b/w TV from Richard Sapper and Marco Zanuso, Acrylic plastic styled like a cube with unvisible picture tube, VHF/UHF CCIR B/G standard, built-in antennas.

    lo chassis è lo stesso del Brionvega Doney 12"

    8 canali VHF + UHF

  • Net weight (2.2 lb = 1 kg)
  • 8.2 kg / 18 lb 1 oz (18.062 lb)
  • Mentioned in
  • Catalogo ANIE 1970/71
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
