- Country
- Italy
- Manufacturer / Brand
- Vega, BP Radio, Brionvega, Brion & Pajetta; Milano, Lissone (MI)
- Year
- 1966 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 123749

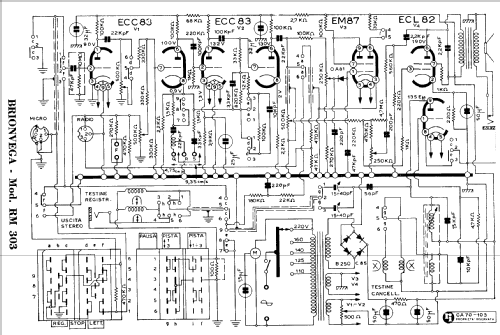

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: RM303 - Vega, BP Radio, Brionvega,
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Design Zanuso.
- Mentioned in
- -- Collector info (Sammler)
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
