TRS201

TRS201; Vega, BP Radio, (ID = 439776) Radio

TRS201; Vega, BP Radio, (ID = 2024892) Radio
TRS201; Vega, BP Radio, (ID = 1723002) Radio TRS201; Vega, BP Radio, (ID = 1723003) Radio

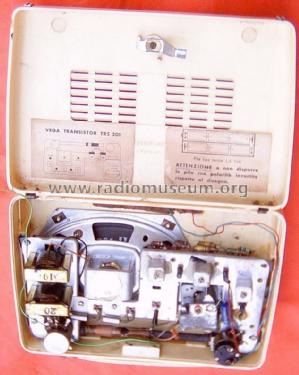

TRS201; Vega, BP Radio, (ID = 1723004) Radio TRS201; Vega, BP Radio, (ID = 1972982) Radio
TRS201; Vega, BP Radio, (ID = 1972983) Radio TRS201; Vega, BP Radio, (ID = 1972984) Radio
TRS201; Vega, BP Radio, (ID = 1972985) Radio
Use red slider bar for more.
TRS201; Vega, BP Radio, (ID = 1723002) Radio
Vega, BP Radio,: TRS201 [Radio] ID = 1723002 933x687
Select picture or schematic to display from thumbnails on the right and click for download.
For model TRS201, Vega, BP Radio, Brionvega, Brion & Pajetta; Milano, Lissone (MI):
ebay auction 251664743569

Country:  Italy
Manufacturer / Brand:  Vega, BP Radio, Brionvega, Brion & Pajetta; Milano, Lissone (MI)
Year: 1957–1961 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: 2N140 2N139 2N139 OC71 OC72 OC72 OA79
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.4 W (unknown quality)
from Radiomuseum.org Model: TRS201 - Vega, BP Radio, Brionvega,
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 250 x 170 x 80 mm / 9.8 x 6.7 x 3.1 inch
Notes

Con maniglia.

Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)
Price in first year of sale 38'000.00 ITL
Source of data Guida Pratica Antique Radio (1) 1999
Mentioned in Guida Pratica Transistor Radios
Literature/Schematics (1) Antique Radio Magazine - Italy, Club Antique Radio Magazine (n. 136 (marzo-aprile 2017) pag. 24-26)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
