TS502 - V/3G

TS502 - V/3G; Vega, BP Radio, (ID = 1540448) Radio

TS502 - V/3G; Vega, BP Radio, (ID = 1540570) Radio
TS502 - V/3G; Vega, BP Radio, (ID = 1342825) Radio TS502 - V/3G; Vega, BP Radio, (ID = 316891) Radio
TS502 - V/3G; Vega, BP Radio, (ID = 1545240) Radio TS502 - V/3G; Vega, BP Radio, (ID = 1545241) Radio
TS502 - V/3G; Vega, BP Radio, (ID = 1545242) Radio
Use red slider bar for more.
TS502 - V/3G; Vega, BP Radio, (ID = 1342825) Radio
Vega, BP Radio,: TS502 - V/3G [Radio] ID = 1342825 640x480

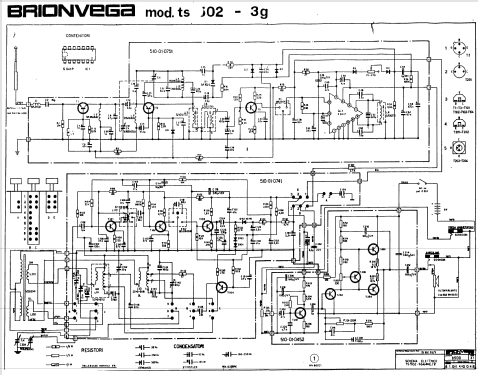

Select picture or schematic to display from thumbnails on the right and click for download.
For model TS502 - V/3G, Vega, BP Radio, Brionvega, Brion & Pajetta; Milano, Lissone (MI)

Country:  Italy
Manufacturer / Brand:  Vega, BP Radio, Brionvega, Brion & Pajetta; Milano, Lissone (MI)
Year: 1970 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 12: S041
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Batteries / addl. power jack / C: 6 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: TS502 - V/3G - Vega, BP Radio, Brionvega,
Material Plastics (no bakelite or catalin)
Shape Design Radio or Novelty / Gadget - fancy or unusual shape.
Dimensions (WHD) 230 x 130 x 130 mm / 9.1 x 5.1 x 5.1 inch
Notes

Vedi anche la pagina della TS502 first version.

Version Jacks Max.MHz Bands Button 1 Button 2 Button 3 Transistors/IC
I 0 104 2 CAF MA MF 9
II 2 104 2 CAF MA MF 9
III/2G 2 104 2 CAF MA MF 10
III/3G 2 104 3 TONO/CAF OM/OL MF/MA 10
IV/2G 2 108 2 TONO MA MF 10
IV/3G 2 108 3 TONO OM/OL MF/MA 10
V/2G 2 108 2 TONO MF MA 12/1
V/3G 2 108 3 TONO OM/OL MF/MA 12/1

Table by Aldo Andreani. Additional useful pictures: battery compartment (I is different), the base of the antenna without the ball (only in I), audio transformers (only in I and II)

Net weight (2.2 lb = 1 kg) 2.2 kg / 4 lb 13.5 oz (4.846 lb)
Mentioned in Antique Radio Magazine - Italy, Club Antique Radio Magazine (n.127, settembre-ottobre 2015, pag. 32-37)
