• Country
• Italy

• Manufacturer / Brand
• Vega, BP Radio, Brionvega, Brion & Pajetta; Milano, Lissone (MI)

• Year
• 1961–1964

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 74464

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• OC170 OC169 OC169 OC71 OC71 OC74 OC74

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Dry Batteries / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

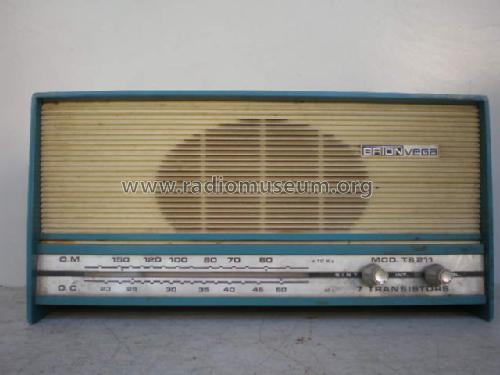

• Model: TS211 - Vega, BP Radio, Brionvega,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 307 x 154 x 120 mm / 12.1 x 6.1 x 4.7 inch

• Notes

• altoparlante ellittico 15 x 10 cm. Dotato di alimentatore esterno.

• Source of data
• Guida Pratica Antique Radio IV (2001)

• Mentioned in
• Guida Pratica Transistor Radios

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
