Soundmirror BK-401 ; Brush Development Co (ID = 1642451) Enrég.-R
Brush Development Co: Soundmirror BK-401 [Enrég.-R] ID = 1642451 933x1128
Sélectionnez une image/schéma pour afficher des vignettes sur la droite et cliquez pour télécharger.
Pour le modèle Soundmirror BK-401, Brush Development Co.; Cleveland, Ohio:

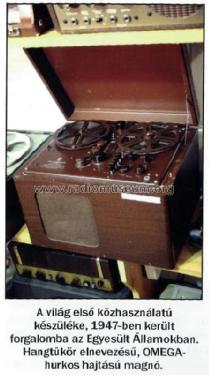

Thanks for Mr.Nagy Vilmos, Hungary, Orsós Magnó Múzeum, Terény and Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation.

Pays:  Etats-Unis
Fabricant / Marque:  Brush Development Co.; Cleveland, Ohio
alternative name

Brush Electronics
Année: 1946 Catégorie: Enrégistreur et/ou reproducteur son/video
Lampes / Tubes 10: 6SJ7 6SN7 6SJ7 6SN7 6E5 6SN7 6SN7 6SN7 6SN7 5Y3
Principe général Amplification Audio
Gammes d'ondes - sans
Particularités Magnétophone à bandes
Tension / type courant Alimentation Courant Alternatif (CA). / 110 Volt
Haut-parleur HP dynamique à aimant permanent (bobine mobile)
Puissance de sortie
De Radiomuseum.org Modèle: Soundmirror BK-401 - Brush Development Co.;
Matière Boitier en bois
Forme Modèle de table de forme quelconque, profil pas précisés.
Dimensions (LHP) 450 x 290 x 350 mm / 17.7 x 11.4 x 13.8 inch

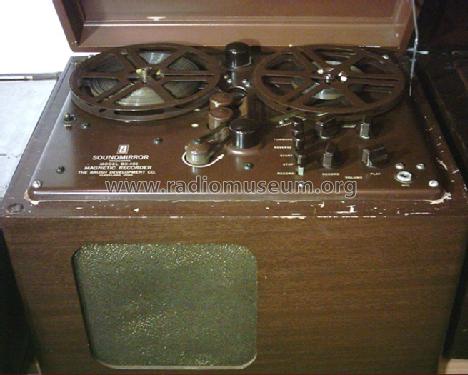

Remarques The Soundmirror BK-401 is the second magnetic tape recorder-reproducer of the Brush Development Company. The operator instructions are mainly done by typewriting. The recording tape is made of paper. 3 motor drive !

Features: 1/4" mono full-track reel-to-reel recorder/reproducer. 3", 5" and 7" EIA hub reels for 2-hour recording. 7 1/2 ips only. Reels made by 3M.

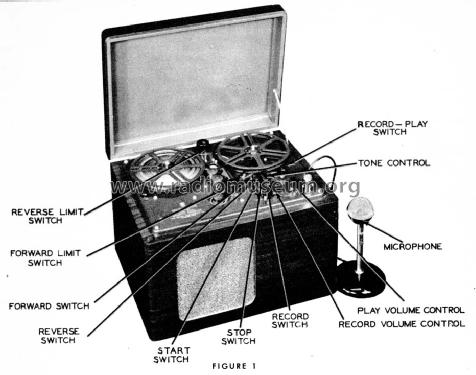

Designed primarily for home-recording purposes. recordings may be made either from a crystal microphone, supplied with the unit, or from a phonograph pickup or the detector stage of a radio. The recording medium is coated-paper tape, marketed under the name of Magnetic Ribbon. Difficulties with slit tilt are avoided in the Soundmirror by using the same head for both recording and playback; a separate head, spaced about 1 inch from the recording head, is employed for erasing. During recording or playback the medium is held against the recording and erasing heads by felt pressure pads, which are automatically withdrawn when the "stop" switch is depressed. Any previous recording on the medium is automatically erased at the time a recording is made. Level is monitored during the recording period by means of a magic eye tube.
Poids net 18.8 kg / 41 lb 6.6 oz (41.41 lb)
Littérature Funkschau (Heft 6 März 1983 Walter Bruch)
Schémathèque (4) Photofact Folder, Howard W. SAMS (Set 42, Date 7/48, Folder 4812-25)

Modèle crée par Ernst Erb. Voir les propositions de modification pour les contributeurs supplémentaires.



Tous les appareils de Brush Development Co.; Cleveland, Ohio
Vous pourrez trouver sous ce lien 42 modèles d'appareils, 38 avec des images et 22 avec des schémas.
