Mambo M5/A

Mambo M5/A; Budapesti (ID = 2468029) R-Player Mambo M5/A; Budapesti (ID = 2468032) R-Player
Mambo M5/A; Budapesti (ID = 2468027) R-Player Mambo M5/A; Budapesti (ID = 2468026) R-Player
Mambo M5/A; Budapesti (ID = 646148) R-Player Mambo M5/A; Budapesti (ID = 1390121) R-Player
Mambo M5/A; Budapesti (ID = 1390122) R-Player Mambo M5/A; Budapesti (ID = 1390123) R-Player
Mambo M5/A; Budapesti (ID = 1390124) R-Player Mambo M5/A; Budapesti (ID = 1390125) R-Player
Use red slider bar for more.

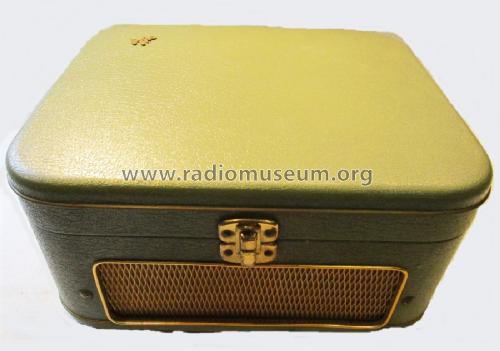

Mambo M5/A; Budapesti (ID = 2468029) R-Player
Budapesti: Mambo M5/A [R-Player] ID = 2468029 1400x1309
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mambo M5/A, Budapesti Rádiótechnikai Gyár (BRG)

Country:  Hungary
Manufacturer / Brand:  Budapesti Rádiótechnikai Gyár (BRG)
Year: 1959 Category: Sound/Video Recorder and/or Player
Valves / Tubes 4: EF86 ECC85 EL84 EM80
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Mambo M5/A - Budapesti Rádiótechnikai Gyár
Material Various materials
Dimensions (WHD) 345 x 180 x 295 mm / 13.6 x 7.1 x 11.6 inch
Notes Tone and motor controller on-off switch made.
Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)
Literature/Schematics (1) Nagy Vilmos, A magyar orsósmagnó gyártás története

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
