SRG90
Bush Radio Ltd.; london
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Bush Radio Ltd.; london
- Year
- 1962
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 159246
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 470/10700 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s) 8 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details

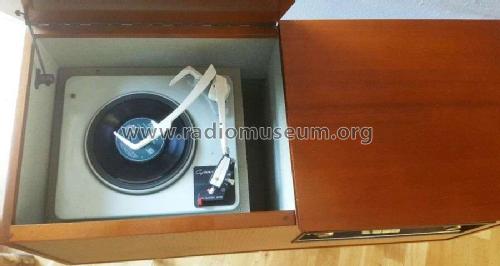

- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 200-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 2 W (unknown quality)
- from Radiomuseum.org
- Model: SRG90 - Bush Radio Ltd.; london

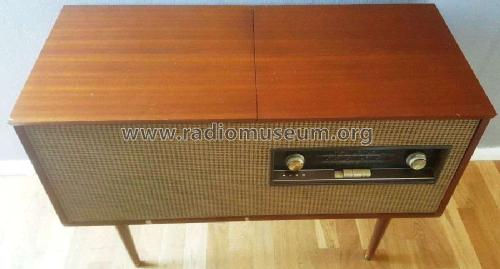

- Shape
- Console with any shape - in general
- Notes
- Radiogram could be adapted to stereo with amplifier unit AU31C.
- Price in first year of sale
- 60.00 GBP
- Source of data
- -- Schematic
- Literature/Schematics (1)
- Radio And Television Servicing books (R&TVS) (ERT, 1361)
- Author
- Model page created by Keith Staines. See "Data change" for further contributors.
