• Year
  • 1956
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 103248

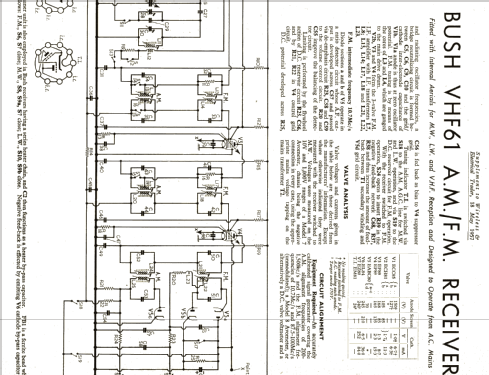

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superheterodyne (common); ZF/IF 470/10700 kHz
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-130; 200-250 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Bakelite case
  • from Radiomuseum.org

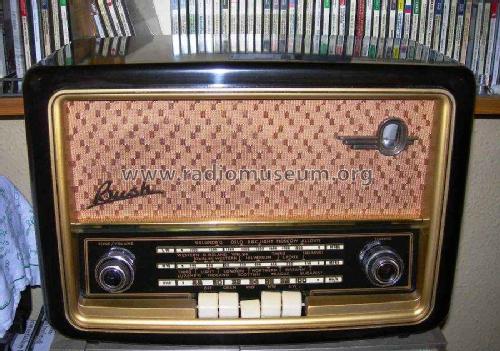

  • Model: VHF61 - Bush Radio; London
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 16.75 x 11.25 x 7.75 inch / 425 x 286 x 197 mm
  • Notes
  • Released August 1956 price £20 8s 3d plus purchase tax. Also available as model VHF62 in wooden case.
  • Price in first year of sale
  • 27.00 GBP
  • Mentioned in
  • -- Original-techn. papers.
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
