• Country
• Great Britain (UK)

• Manufacturer / Brand
• Bush Radio; London

• Year
• 1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 110256

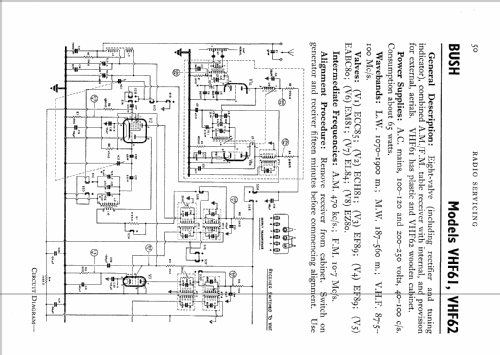

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECC85 ECH81 EF89 EF89 EM81 EABC80 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 470/10700 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-130; 200-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: VHF62 - Bush Radio; London

• Shape
• Tablemodel with Push Buttons.

• Notes
• Wooden cased version of the Bush VHF61.

• Price in first year of sale
• 33.00 GBP

• Source of data
• - - Data from my own collection

• Author
• Model page created by Howard Craven. See "Data change" for further contributors.

• Other Models

• Here you find 397 models, 331 with images and 238 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
