VHF72
Bush Radio; London
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Bush Radio; London
- Year
- 1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 103252

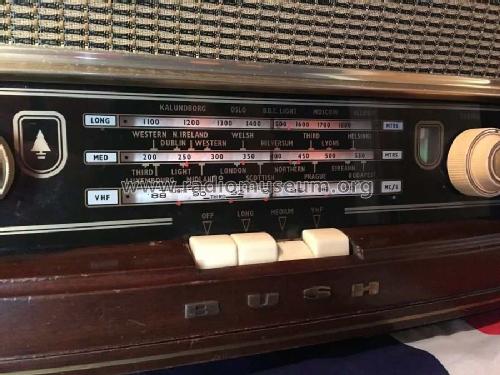

picture from prodavalnik.com

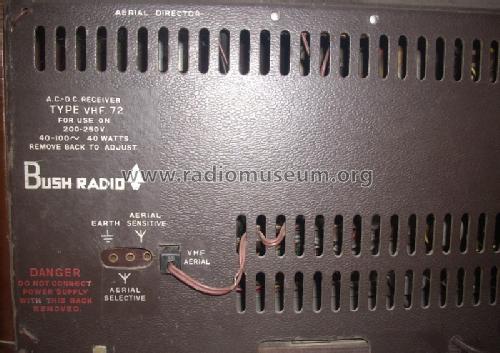

picture from prodavalnik.com
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 470/10700 kHz
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- AC/DC-set / 200-250 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 2 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: VHF72 - Bush Radio; London
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 18.75 x 11.88 x 9 inch / 476 x 302 x 229 mm
- Notes
-
Released October 1958 price £22 4s 1d plus purchase tax. Sockets for AM and FM aerials. Rotatable AM ferrite rod aerial. Elliptical main loudspeaker 6 x 4 inch. Same as the Bush VHF71 model but in a wooden case and with an additional electrostatic tweeter loudspeaker.
- Net weight (2.2 lb = 1 kg)
- 15.25 lb (15 lb 4 oz) / 6.924 kg
- Price in first year of sale
- 30.00 GBP
- Mentioned in
- -- Original-techn. papers.
- Literature/Schematics (1)
- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1439)
- Literature/Schematics (2)
- - - Manufacturers Literature
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
