• Country
• Great Britain (UK)

• Manufacturer / Brand
• Bush Radio; London

• Year
• 1961 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 152170

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECC85 ECH81 EF89 EF89 EM81 EABC80 EL84 EZ81

• Main principle
• Superheterodyne (common); ZF/IF 470/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 100-120 / 200-250 Volt

• Loudspeaker
• 3 Loudspeakers

• from Radiomuseum.org

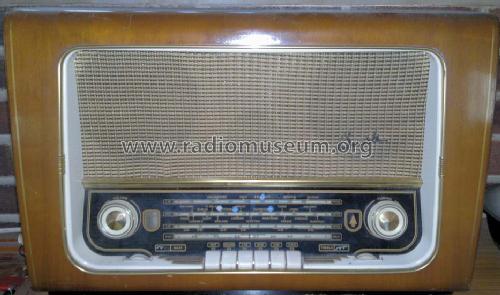

• Model: VHF94 - Bush Radio; London

• Notes
• Chassis similar to model VHF64.

• Source of data
• Radio And Television Servicing books (R&TVS)

• Author
• Model page created by Keith Staines. See "Data change" for further contributors.
