VTR103; Bush Radio; London (ID = 1766807) Radio
Bush Radio; London: VTR103 [Radio] ID = 1766807 900x878
Select picture or schematic to display from thumbnails on the right and click for download.
For model VTR103, Bush Radio; London:

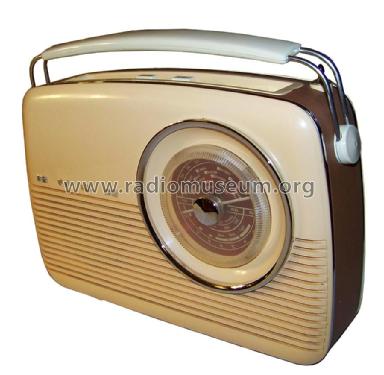

Bush VTR103 front 1

Country:  Great Britain (UK)
Manufacturer / Brand:  Bush Radio; London
Year: 1961–1965 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF114 AF115 AF116 AF116 AF116 OC71 OC81D OC81 OC81
Main principle Super-Heterodyne (Super in general); ZF/IF 470/10700 kHz
Tuned circuits 7 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: VTR103 - Bush Radio; London
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 13.5 x 10.75 x 3.75 inch / 343 x 273 x 95 mm
Notes

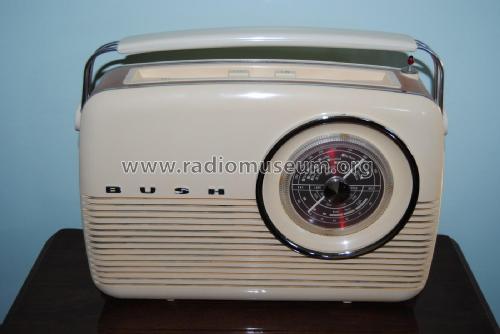

Sockets for car aerial and earphone. Early examples were green and blue, from 1963 cream and tan. See also the Bush Radio VTR103C model.

Net weight (2.2 lb = 1 kg) 3.2 kg / 7 lb 0.8 oz (7.048 lb)
Collectors' prices
Literature/Schematics (1) -- Original-techn. papers.

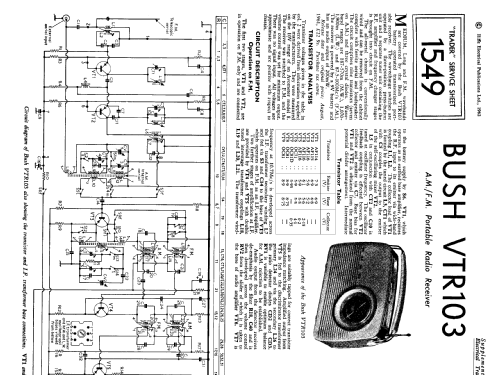

Literature/Schematics (2) Trader Sheet 1549

Model page created by Howard Craven. See "Data change" for further contributors.
