• Country
• Canada

• Manufacturer / Brand
• Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC

• Year
• 1937/1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 234273

• • alternative name: CMC Canada || Marconi, Canada

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• 6K7 6L7 6C5 6A8 6G5 6K7 6Q7 6C5 6L6 6L6 5X4

• Main principle
• Superhet, double/triple conversion; ZF/IF 462.5/5065 kHz; 3 AF stage(s)

• Tuned circuits
• 9 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm

• Power out
• 9.6 W (13 W max.)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 119 - Canadian Marconi Co. Ltd. CMC,

• Shape
• Console with Push Buttons.

• Notes

• The Canadian Marconi model 119 is an 11-tube radio with tuning eye tube and 10-button station selector. Double conversion on shortwave. Covers the following ranges:

  Band	Frequency (kHz)
  Standard Broadcast	530 - 1630
  49m	5930 - 6220
  31m	9380 - 9720
  25m	11650 - 11970
  19m	15040 - 15450
  16m	17620 - 18030

• Net weight (2.2 lb = 1 kg)
• 150 lb 0 oz (150 lb) / 68.1 kg

• Mentioned in
• Radio College of Canada (RCC) (Marconi p.68/69)

• Literature/Schematics (1)

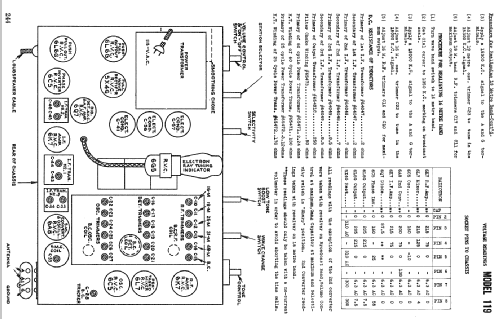

• Marconi Service Manual (Volume 1) (Page 241-246)
