• Year
  • 1937/1938 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 259666
    • alternative name: CMC Canada || Marconi, Canada

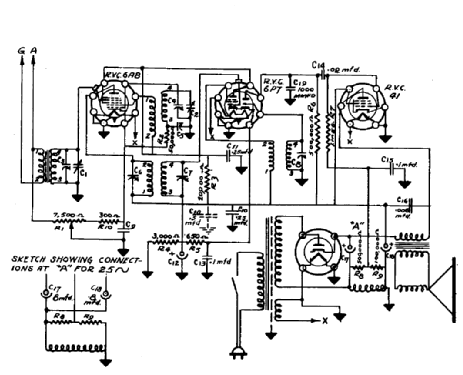

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 462.5 kHz; 2 AF stage(s)
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
  • Power out
  • 0.7 W (0.9 W max.)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: 98 - Canadian Marconi Co. Ltd. CMC,
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Author
  • Model page created by Tom Seeger. See "Data change" for further contributors.
