For model B596, Canadian Westinghouse, Hamilton:

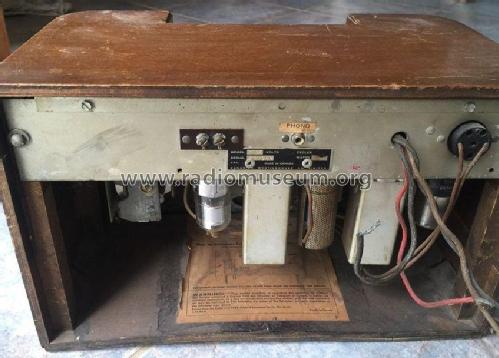

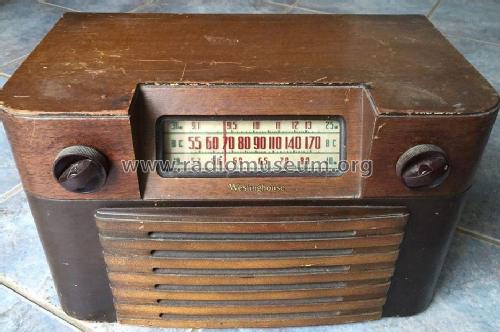

From a Canadian Kijiji ad.

Country:  Canada
Manufacturer / Brand:  Canadian Westinghouse, Hamilton
alternative name

Westinghouse Canada
Year: 1948/1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 1N5GT 1A7GT 1N5GT 1H5GT 3Q5GT
Main principle Superheterodyne (common); ZF/IF 460 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Dry Batteries / 90 & 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: B596 - Canadian Westinghouse,
Dimensions (WHD) 15 x 9.5 x 8 inch / 381 x 241 x 203 mm
Circuit diagram reference Radio College of Canada
Literature/Schematics (1) Westinghouse page 136, 137

Model page created by Dirk Taekels. See "Data change" for further contributors.
