RA-1605

RA-1605 ; Canadian (ID = 606403) Radio

RA-1605 ; Canadian (ID = 606404) Radio

RA-1605 ; Canadian (ID = 606405) Radio

RA-1605 ; Canadian (ID = 606406) Radio

RA-1605 ; Canadian (ID = 606407) Radio
Use red slider bar for more.
RA-1605 ; Canadian (ID = 606403) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Canada
Manufacturer / Brand:  Canadian Westinghouse, Hamilton
alternative name

Westinghouse Canada
Year: 1948/1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 16: 6AG5 6C4 6AG5 6BA6 6U5 6BA6 6BE6 6BA6 6H6 6SQ7 6SC7 6J5 2A3 2A3 5R4GY or 5U4G 5Y3GT
Main principle Superhet with RF-stage; ZF/IF 10700 / 460 kHz
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: RA-1605 - Canadian Westinghouse,
Circuit diagram reference Radio College of Canada

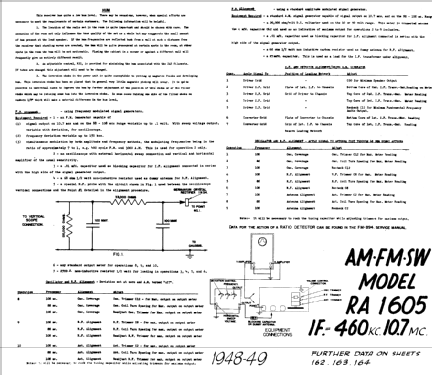

Literature/Schematics (1) Westinghouse page162, 163, 164, 165

Model page created by Dirk Taekels. See "Data change" for further contributors.



All listed radios etc. from Canadian Westinghouse, Hamilton
Here you find 373 models, 154 with images and 347 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
