W-886-X

W-886-X ; Canadian (ID = 605676) Radio

W-886-X ; Canadian (ID = 605677) Radio
W-886-X ; Canadian (ID = 1770598) Radio
Use red slider bar for more.
W-886-X ; Canadian (ID = 1770598) Radio

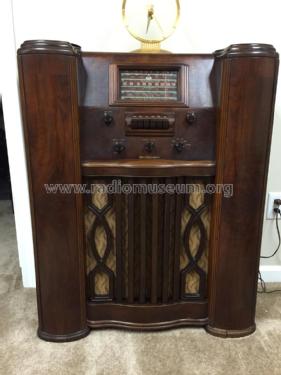

Canadian: W-886-X [Radio] ID = 1770598 852x1136
Select picture or schematic to display from thumbnails on the right and click for download.
For model W-886-X, Canadian Westinghouse, Hamilton

Country:  Canada
Manufacturer / Brand:  Canadian Westinghouse, Hamilton
alternative name

Westinghouse Canada
Year: 1941/1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 6SK7 6SA7 6SK7 6SQ7 6U5 or 6G5 6AD7G 6F6G 5Y4G
Main principle Superhet with RF-stage; ZF/IF 460 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: W-886-X - Canadian Westinghouse,
Circuit diagram reference Radio College of Canada
Literature/Schematics (1) Westinghouse page 116, 117

Model page created by Dirk Taekels. See "Data change" for further contributors.
