For model 101, Capehart Corp.; Fort Wayne, IN - see also Farnsworth

Country:  United States of America (USA)
Manufacturer / Brand:  Capehart Corp.; Fort Wayne, IN - see also Farnsworth
Year: 1935 ? perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 13:
Main principle Superheterodyne (common)
Wave bands Broadcast plus 2 Short Wave bands.
Details Record Player (perh.Changer)
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: 101 - Capehart Corp.; Fort Wayne, IN
Material Wooden case
Shape Console with any shape - in general
Notes

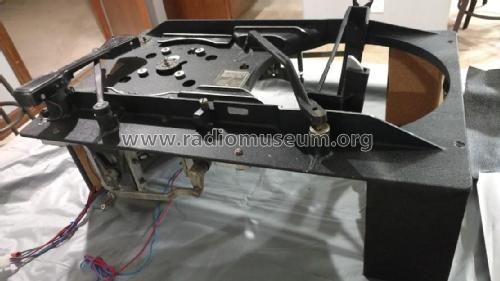

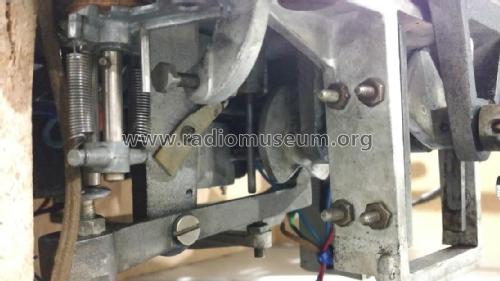

The Capehart model 101 is shown at Stein "Pre-War-Consoles" page 48 for ca. 1935 with 13 tubes, 3 bands and record player for $ 250. According to Baumbach page 12 this is one model of the earlyer group with designation 101 through 106, made about 1932, designed for the home like the later series 100 which begun 1938/39 season. Rider's shows a model 103 and 104 Cosmopolitan with chassis W-904 with 11 tubes, but the model 101 seems to have 13 tubes. Baumbach presumes that the models employ an Amperion changer. 101 is most probably earlier than 1935!

Price in first year of sale 250.00 $
Source of data Pre-War Consoles
Mentioned in The Incomparable Capehart

Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
