202-E Georgian Ch= W864; Capehart Corp.; Fort (ID = 1384841) Radio
Capehart Corp.; Fort: 202-E Georgian Ch= W864 [Radio] ID = 1384841 549x741
Select picture or schematic to display from thumbnails on the right and click for download.
For model 202-E Georgian Ch= W864, Capehart Corp.; Fort Wayne, IN - see also Farnsworth:

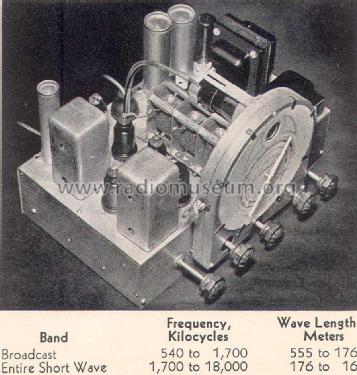

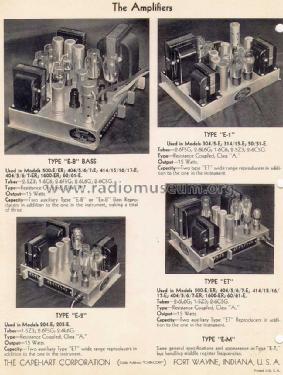

From Original documents Capehart by courtesy of member George Epple.

Country:  United States of America (USA)
Manufacturer / Brand:  Capehart Corp.; Fort Wayne, IN - see also Farnsworth
Year: 1936/1937 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 12: 6K7 6K7 6Q7 6L7 6G5 6C5 5Z4 6F5G 6F5G 6L6G 6L6G 5Z3
Main principle Superhet with RF-stage; ZF/IF 465 kHz; 2 AF stage(s)
Tuned circuits 9 AM circuit(s)
Wave bands Broadcast, Short Wave(s) and Police.
Details Record-Changer, both sides!
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 202-E Georgian Ch= W864 - Capehart Corp.; Fort Wayne, IN
Material Wooden case
Shape Console with any shape - in general
Notes

The model 202E Georgian is not mentioned in CAPEHART "Detailed Specifications 1937 Series E".

The Capehart model 200 series were introduced for season 1936/37 as suffix "E" and 1937/38 as "F". See here the "Common information for the Capehart model pages for the 1930s and 1940s".
This Model 202E Georgian from Capehart Corp has according to Rider's only 9 tubes.
Speaker field is 4200 ohms. 3-gang tuning capacitor. Push-pull output.
We don't know yet if it has a changer 16-E, none or an other player.

External source of data Ernst Erb
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (1) Rider's Perpetual, Volume 7 = 1936 and before (Schematic from October 14, 1935)
Literature/Schematics (2) The Incomparable Capehart (photo page 25.)
