• Year
  • 1928/1929
perfect model
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 223422

 Technical Specifications

  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles (separate order for 25 or 50 cycles), 110 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

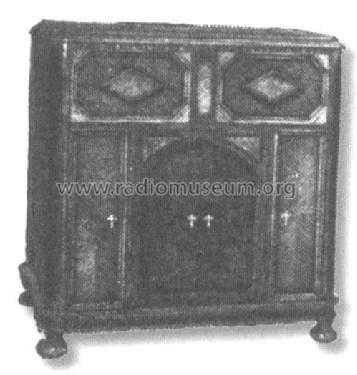

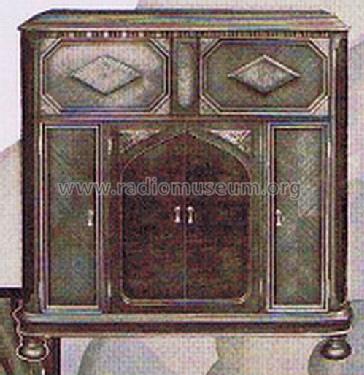

  • Model: Orchestrope Home Ch= 245 - Capehart Corp.; Fort Wayne, IN
  • Shape
  • Console with any shape - in general
  • Notes
  • Orchestrope Home (probably no coin slot)
    The Orchestrope is the first product of then called "Capehart Automatic Phonograph Co.", which company lasted only one year and had then to be financed as Capehart Corporation (moved to Fort Wayne, IN). The model was made with a coin slot except at least "Aristocrat". Difference between 28-G and 28-F is for instance coin box on top for the 28-F model. 250 type amp is possible instead of amp. 245 - for two speakers, for instance the model 600 outdoor twin speakers.

    The coin operated machine is capable of holding 28 records. There is no selection. It is a continuous play of the slack in place, all 56 sides. In those pioneering days, Capehart favored a changer that drags records across the mechanism, to get them to the turntable, and away from it. It has a springwound phonograph but it is wound by an electric motor. The same electric motor drives the changer mechanism. The springwound mechanism was made for the poor electricity supply at that time - to keep the speed straight.

    There are several models of Orchestrope known like: Club, Commercial (wide), Commercial (high), Commercial 28 as 28-F, (perhaps 28-G) and 28-GB, Auditorium with a separate Orchestrope Speaker, Aristocrat without coin slot, Home and the "Park" with a separate speaker cabinet, Speaker 600.
    In March 1930 came a less expensive Amperion line with a simple turning changer, followed by models with the drop-type only "10-12" mechanism in 1931. The main success was later the changer 16-E etc. - see more details and summaries here.

  • Author
  • Model page created by Ernst Erb. See "Data change" for further contributors.
