• Country
• United States of America (USA)

• Manufacturer / Brand
• Capitol Appliance Distributor Div., (IN)

• Year
• 1959 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 126766

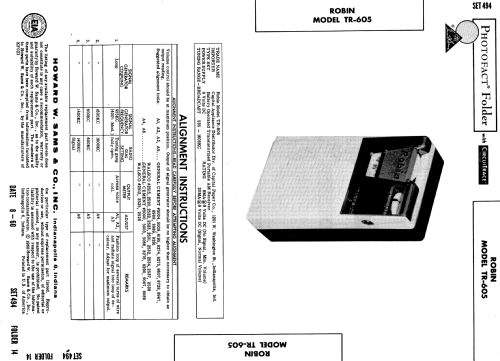

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• ST37D ST28A ST28C ST301 ST122 ST122

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 1 x 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

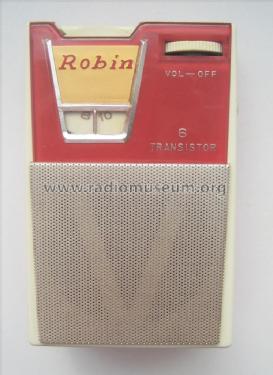

• Model: Robin TR-605 - Capitol Appliance Distributor

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Notes

• Battery operated transistorized portable AM receiver.

  See also the similar models Robin Transistor 6 and LeVer Transistor 6.

  Manufacturer in Japan most likely is NEC.
