Stereo PPP Verstärker AAS26

Carad; Kuurne

  • Year
  • 1960–1966 ?
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 109315
    • Brand: Carpentier, Ets. G.L.

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Number of Transistors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 130; 145; 220; 245 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 24 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stereo PPP Verstärker AAS26 - Carad; Kuurne
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 390 x 120 x 200 mm / 15.4 x 4.7 x 7.9 inch
  • Notes

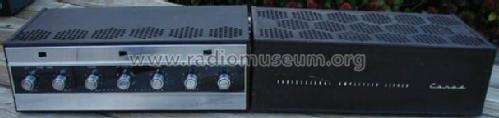

  • This power amplifier is the complement of the Carad stereophonic preamplifier PPC 27; Output power is 2 x 12 Watts.

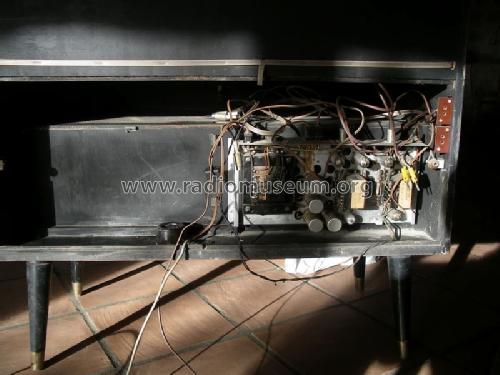

    First version was used as a chassis only in radiograms or integrated models.
    The combination of a PPC27 and an AAS26 is identical to the circuit of the PAS29 amplifier, but two times present.
  • Source of data
  • -- Original prospect or advert
