Sonate A527FL
Carad; Kuurne
- Country
- Belgium
- Manufacturer / Brand
- Carad; Kuurne
- Year
- 1947 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 222392
-
- Brand: Carpentier, Ets. G.L.
From publicity material, 1948
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 145; 220; 250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch
- Power out
- 2.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Sonate A527FL - Carad; Kuurne
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 660 x 420 x 385 mm / 26 x 16.5 x 15.2 inch
- Notes
- This is probably the first Carad model developed after WWII, similar to their first radio model A525, produced in 1939. Case style seems inspired by Telefunken's model D860WK.

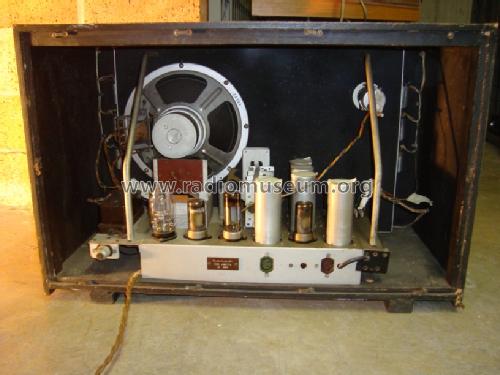

One tube lacks any identification, looks like a HF pentode.
- Net weight (2.2 lb = 1 kg)
- 16.5 kg / 36 lb 5.5 oz (36.344 lb)
- Author
- Model page created by Jacques Deseyne. See "Data change" for further contributors.
