Buddy

Buddy; CEI, Controlli (ID = 2593630) Radio Buddy; CEI, Controlli (ID = 2593632) Radio
Buddy; CEI, Controlli (ID = 2593631) Radio
Use red slider bar for more.

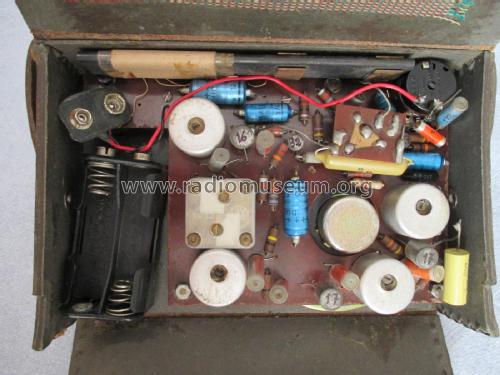

Buddy; CEI, Controlli (ID = 2593630) Radio
CEI, Controlli: Buddy [Radio] ID = 2593630 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Buddy, CEI, Controlli Elettronici Industriali; Bologna

Country:  Italy
Manufacturer / Brand:  CEI, Controlli Elettronici Industriali; Bologna
alternative name

Hermann
Brand
Selonyx
Year: 1960 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: AF116 AF117 AF117 AC132 OC71 AC125 AC127
Main principle Superheterodyne (common); 3 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / AA: 4 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Buddy - CEI, Controlli Elettronici
Material Leather / canvas / plastic - over other material
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Mentioned in Antique Radio Magazine - Italy, Club Antique Radio Magazine (n.158 novembre-dicembre 2020 pag. 26-27)

Model page created by Aldo Andreani. See "Data change" for further contributors.



All listed radios etc. from CEI, Controlli Elettronici Industriali; Bologna
Here you find 9 models, 9 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
