Hermann OM Radio

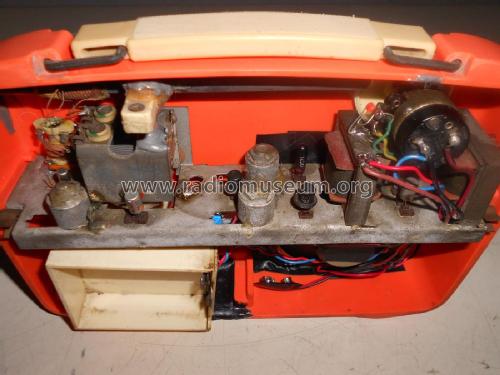

Hermann OM Radio ; CEI, Compagnia (ID = 2349539) Radio Hermann OM Radio ; CEI, Compagnia (ID = 2349543) Radio
Hermann OM Radio ; CEI, Compagnia (ID = 2349541) Radio Hermann OM Radio ; CEI, Compagnia (ID = 2349542) Radio
Hermann OM Radio ; CEI, Compagnia (ID = 2349538) Radio Hermann OM Radio ; CEI, Compagnia (ID = 2349540) Radio
Use red slider bar for more.
Hermann OM Radio ; CEI, Compagnia (ID = 2349539) Radio
CEI, Compagnia: Hermann OM Radio [Radio] ID = 2349539 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Hermann OM Radio, CEI, Compagnia Elettronica Industriale; Milano

Country:  Italy
Manufacturer / Brand:  CEI, Compagnia Elettronica Industriale; Milano
Year: 1958 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: AF127 AC126 SFT107 SFT107 OC71 OC72 OC72
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 2 x 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
Power out
from Radiomuseum.org Model: Hermann OM Radio - CEI, Compagnia Elettronica
Material Moulded (Bakelite or Plastics)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 230 x 170 x 60 mm / 9.1 x 6.7 x 2.4 inch
Notes

controllo volume - maniglia di trasporto - antenna interna in ferrite.

Net weight (2.2 lb = 1 kg) 1.050 kg / 2 lb 5 oz (2.313 lb)

Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
