• Year
  • 1941/1942
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 80362

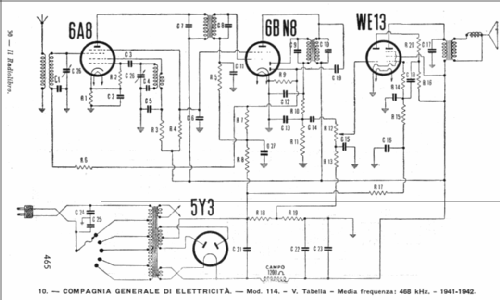

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 468 kHz
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • from Radiomuseum.org
  • Model: 114 - CGE, Compagnia Generale di
  • Source of data
  • -- Schematic
  • Mentioned in
  • D. E. Ravalico, Il Radiolibro, 8^ Edizione, Hoepli
  • Author
  • Model page created by Alessandro De Poi. See "Data change" for further contributors.
