Super Trionda 453RF

Super Trionda 453RF; CGE - Compagnia (ID = 36820) Radio

Super Trionda 453RF; CGE - Compagnia (ID = 2575391) Radio

Super Trionda 453RF; CGE - Compagnia (ID = 2585456) Radio
Super Trionda 453RF; CGE - Compagnia (ID = 565497) Radio Super Trionda 453RF; CGE - Compagnia (ID = 565500) Radio
Super Trionda 453RF; CGE - Compagnia (ID = 565502) Radio Super Trionda 453RF; CGE - Compagnia (ID = 565498) Radio
Super Trionda 453RF; CGE - Compagnia (ID = 565499) Radio Super Trionda 453RF; CGE - Compagnia (ID = 565501) Radio
Super Trionda 453RF; CGE - Compagnia (ID = 565503) Radio Super Trionda 453RF; CGE - Compagnia (ID = 565504) Radio
Super Trionda 453RF; CGE - Compagnia (ID = 565505) Radio Super Trionda 453RF; CGE - Compagnia (ID = 1611295) Radio
Use red slider bar for more.
Super Trionda 453RF; CGE - Compagnia (ID = 565497) Radio
CGE - Compagnia: Super Trionda 453RF [Radio] ID = 565497 477x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super Trionda 453RF, CGE - Compagnia Generale di Elettricità; Milano

Country:  Italy
Manufacturer / Brand:  CGE - Compagnia Generale di Elettricità; Milano
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A7 6D6 75 42 80
Main principle Superheterodyne (common); ZF/IF 459 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 130; 145; 155; 170; 230; 255 Volt

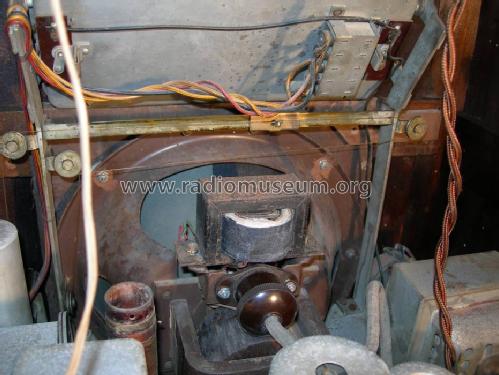

Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Super Trionda 453RF - CGE - Compagnia Generale di
Material Wooden case

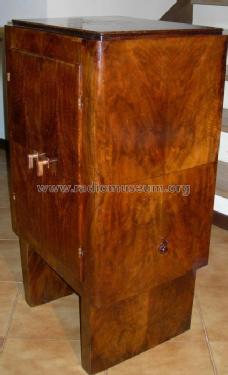

Shape Console with any shape - in general
Dimensions (WHD) 510 x 930 x 395 mm / 20.1 x 36.6 x 15.6 inch
Notes

CGE 453 Super Trionda.

Controllo di tono.
Nel primo schema i valori delle tensioni di alimentazione sono invertiti.

Price in first year of sale 2'100.00 ITL
Source of data Guida Pratica Antique Radio (1) 1999
Mentioned in La moderna Supereterodina, Ravalico, 1938 (pag. 358)
Literature/Schematics (1) Il Radio Libro (E.D. Ravalico) Edizioni Hoepli
Literature/Schematics (2) -- Schematic (La Riparazione degli Apparecchi Radio Delforno-Colciago - Lavagnolo - Italy - 1941)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
