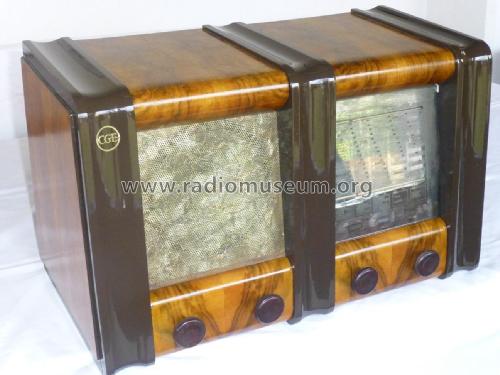

For model 721 (721M), CGE - Compagnia Generale di Elettricità; Milano:
APPARECCHIO IN CATTIVE CONDIZIONI RIMESSO A NUOVO

Country:  Italy
Manufacturer / Brand:  CGE - Compagnia Generale di Elettricità; Milano
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: WE43 or ACH1C 6K7G 6Q7G 6V6G 5Y3
Main principle Superheterodyne (common); ZF/IF 459 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 721 - CGE - Compagnia Generale di
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 560 x 320 x 290 mm / 22 x 12.6 x 11.4 inch
Notes

OM da 200 a 550 m; OC da 20 a 50 m.

Lo schema indica una valvola inesistente, AK7G, evidente errore di trascrizione, in luogo della 6K7G.

Net weight (2.2 lb = 1 kg) 15 kg / 33 lb 0.6 oz (33.04 lb)
Price in first year of sale 1'190.00 ITL
Source of data Guida Pratica Antique Radio (1) 1999
Mentioned in -- Original prospect or advert
Literature/Schematics (1) Il Radio Libro (E.D. Ravalico) Edizioni Hoepli (VI edizione 1942)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
