- Country
- Italy
- Manufacturer / Brand
- CGE, Compagnia Generale di Elettricità; Milano
- Year
- 1955/1956
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 113522

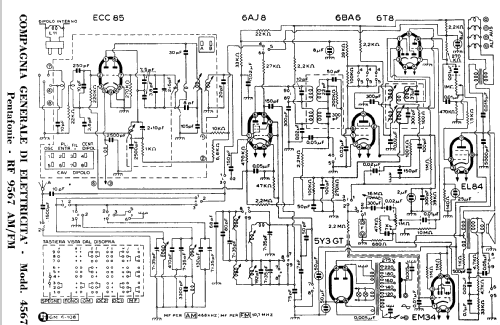

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, 2 Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110-275 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 9567RF-MF - CGE, Compagnia Generale di
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 860 x 620 x 420 mm / 33.9 x 24.4 x 16.5 inch
- Source of data
- Guida Pratica Antique Radio (1) 1999
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
