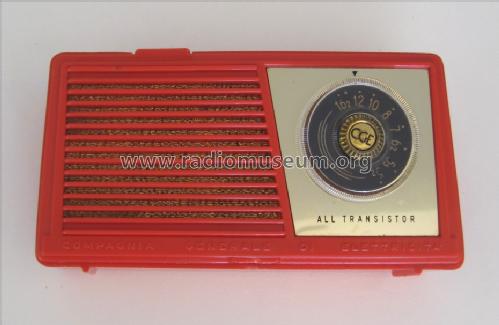

CGE - Compagnia: All Transistor 0596 [Radio] ID = 1708237 932x607

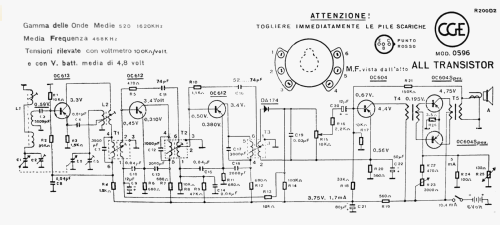

Select picture or schematic to display from thumbnails on the right and click for download.
For model All Transistor 0596, CGE - Compagnia Generale di Elettricità; Milano

Country:  Italy
Manufacturer / Brand:  CGE - Compagnia Generale di Elettricità; Milano
Year: 1959/1960 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: OC44 OC45 OC45 OC71 OC72 OC72 OA174
Main principle Superheterodyne (common); ZF/IF 468 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8.5 cm = 3.3 inch
Power out
from Radiomuseum.org Model: All Transistor 0596 - CGE - Compagnia Generale di
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 170 x 90 x 45 mm / 6.7 x 3.5 x 1.8 inch
Notes 1 diodo al cristallo.
Net weight (2.2 lb = 1 kg) 0.470 kg / 1 lb 0.6 oz (1.035 lb)
Source of data Guida Pratica Antique Radio (1) 1999

Model page created by Alessandro De Poi. See "Data change" for further contributors.
