Audioletta 1586

Audioletta 1586; CGE - Compagnia (ID = 400142) Radio

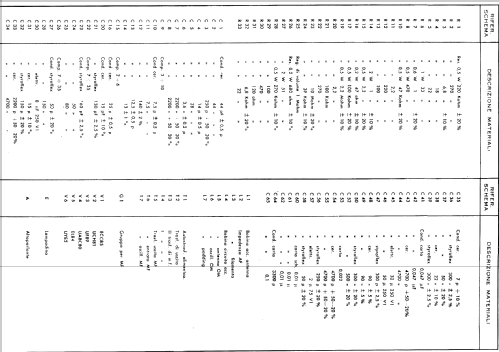

Audioletta 1586; CGE - Compagnia (ID = 400143) Radio
Audioletta 1586; CGE - Compagnia (ID = 248862) Radio Audioletta 1586; CGE - Compagnia (ID = 248866) Radio
Audioletta 1586; CGE - Compagnia (ID = 278130) Radio Audioletta 1586; CGE - Compagnia (ID = 248863) Radio
Audioletta 1586; CGE - Compagnia (ID = 248865) Radio Audioletta 1586; CGE - Compagnia (ID = 278131) Radio
Audioletta 1586; CGE - Compagnia (ID = 446866) Radio Audioletta 1586; CGE - Compagnia (ID = 692592) Radio
Audioletta 1586; CGE - Compagnia (ID = 744755) Radio Audioletta 1586; CGE - Compagnia (ID = 756939) Radio
Use red slider bar for more.
Audioletta 1586; CGE - Compagnia (ID = 248862) Radio
CGE - Compagnia: Audioletta 1586 [Radio] ID = 248862 741x589
Select picture or schematic to display from thumbnails on the right and click for download.
For model Audioletta 1586, CGE - Compagnia Generale di Elettricità; Milano:
Foto per cortesia venditore ebay: fravagnano

Country:  Italy
Manufacturer / Brand:  CGE - Compagnia Generale di Elettricità; Milano
Year: 1958/1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 UCH81 UF89 UABC80 EL84 UY85
Main principle Superheterodyne (common); ZF/IF 468/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 120; 140; 160; 180; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 12 cm = 4.7 inch
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Audioletta 1586 - CGE - Compagnia Generale di
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 255 x 180 x 145 mm / 10 x 7.1 x 5.7 inch
Notes Mobile in legno rivestito in plastica similpelle con diverse varianti di colore ("pergamena, antilope chiaro, verde chiaro"). Serie ANIE MF. Altoparlante ellittico 120x65 mm.
Wooden case, lined with leatherette in 3 different colour variants.
Net weight (2.2 lb = 1 kg) 2.8 kg / 6 lb 2.7 oz (6.167 lb)
Price in first year of sale 29'800.00 LIT
Source of data Guida Pratica Antique Radio (1) 1999
Mentioned in -- Original prospect or advert
Literature/Schematics (1) -- Schematic

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from CGE - Compagnia Generale di Elettricità; Milano
Here you find 292 models, 238 with images and 215 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
