Pocket 0616

Pocket 0616; CGE - Compagnia (ID = 1543205) Radio

Pocket 0616; CGE - Compagnia (ID = 1543206) Radio

Pocket 0616; CGE - Compagnia (ID = 646134) Radio

Pocket 0616; CGE - Compagnia (ID = 646135) Radio

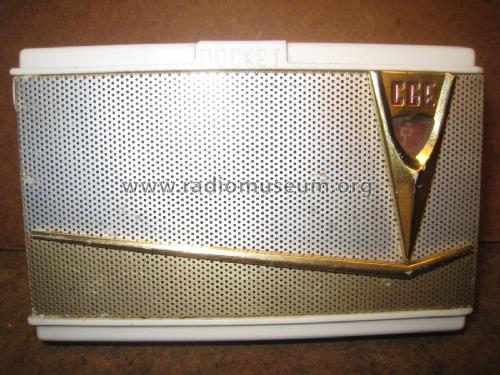

Pocket 0616; CGE - Compagnia (ID = 2035601) Radio Pocket 0616; CGE - Compagnia (ID = 2035600) Radio
Pocket 0616; CGE - Compagnia (ID = 2035603) Radio Pocket 0616; CGE - Compagnia (ID = 2035602) Radio
Pocket 0616; CGE - Compagnia (ID = 2035604) Radio Pocket 0616; CGE - Compagnia (ID = 1107709) Radio
Pocket 0616; CGE - Compagnia (ID = 646136) Radio Pocket 0616; CGE - Compagnia (ID = 1107710) Radio
Pocket 0616; CGE - Compagnia (ID = 1107711) Radio
Use red slider bar for more.
Pocket 0616; CGE - Compagnia (ID = 2035601) Radio
CGE - Compagnia: Pocket 0616 [Radio] ID = 2035601 1102x764
Select picture or schematic to display from thumbnails on the right and click for download.
For model Pocket 0616, CGE - Compagnia Generale di Elettricità; Milano

Country:  Italy
Manufacturer / Brand:  CGE - Compagnia Generale di Elettricità; Milano
Year: 1960/1961 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: OC44 OC45 OC45 OC71 OC72 OC72
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
Power out 0.15 W (unknown quality)
from Radiomuseum.org Model: Pocket 0616 - CGE - Compagnia Generale di
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 115 x 75 x 30 mm / 4.5 x 3 x 1.2 inch
Net weight (2.2 lb = 1 kg) 0.280 kg / 0 lb 9.9 oz (0.617 lb)
Price in first year of sale 19'900.00 ITL
Source of data Guida Pratica Transistor Radios
Mentioned in Catalogo ANIE (1960-61)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
