Amperometro 150/5 A HC9I

Amperometro 150/5 A HC9I; CGS; Monza (ID = 2349760) Misc
Amperometro 150/5 A HC9I; CGS; Monza (ID = 2349594) Misc Amperometro 150/5 A HC9I; CGS; Monza (ID = 2349597) Misc
Amperometro 150/5 A HC9I; CGS; Monza (ID = 2349595) Misc Amperometro 150/5 A HC9I; CGS; Monza (ID = 2349596) Misc
Use red slider bar for more.
Amperometro 150/5 A HC9I; CGS; Monza (ID = 2349594) Misc
CGS; Monza: Amperometro 150/5 A HC9I [Misc] ID = 2349594 1400x1345
Select picture or schematic to display from thumbnails on the right and click for download.
For model Amperometro 150/5 A HC9I, CGS; Monza

Country:  Italy
Manufacturer / Brand:  CGS; Monza
Year: 1950 ?? Category: Miscellaneous (Other, Various) - see notes
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Amperometro 150/5 A HC9I - CGS; Monza
Material Metal case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 118 x 118 x 55 mm / 4.6 x 4.6 x 2.2 inch
Notes

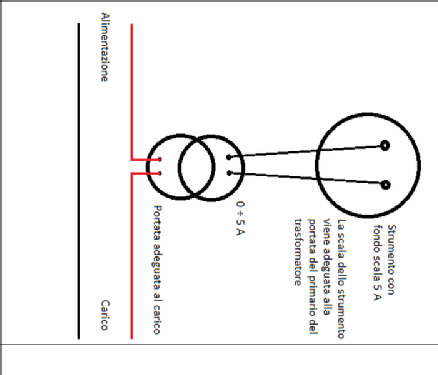

Amperometro per CA con fondo scala effettivo 5 A. La scala stampata si riferisce alla portata resa possibile da un trasformatore di corrente con rapporto 150/5. Costruito per installazione ad incasso/retroquadro.

Net weight (2.2 lb = 1 kg) 0.5 kg / 1 lb 1.6 oz (1.101 lb)

Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.



All listed radios etc. from CGS; Monza
Here you find 10 models, 10 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
