• Country
• Soviet Union

• Manufacturer / Brand
• Charkov Radio Works Nr. 158, former 193 (company code 165)

• Year
• 1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 97868

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6Н3П 6И1П 6К4П 6Х2П 6Е5С 6Н2П 6П14П

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker

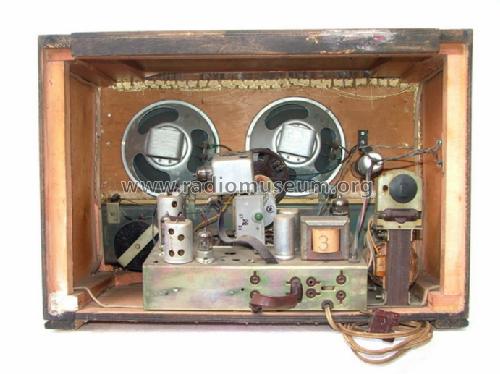

• 2 Loudspeakers

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

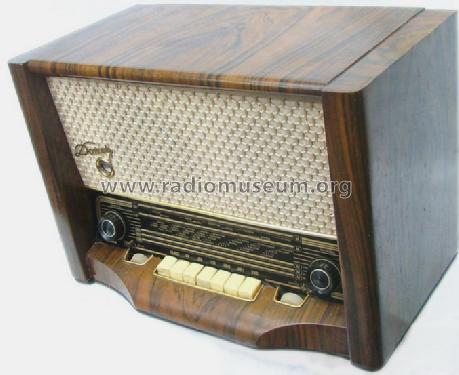

• Model: Donez - Charkov Radio Works Nr. 158,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 510 x 354 x 295 mm / 20.1 x 13.9 x 11.6 inch

• Notes

• From 1954 set produced in Berdsk Radio Works too.

• Net weight (2.2 lb = 1 kg)
• 11.5 kg / 25 lb 5.3 oz (25.33 lb)

• Price in first year of sale
• 88.00 RUR

• Mentioned in
• E.A. Levitin "Radio sets" Moscow 1960

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Zenonas Langaitis. See "Data change" for further contributors.
