4-R Long Distance Receiver-Amplifier early (with porthole)

4-R Long Distance Receiver-Amplifier; Zenith Radio Corp.; (ID = 2356612) Radio 4-R Long Distance Receiver-Amplifier; Zenith Radio Corp.; (ID = 376520) Radio
4-R Long Distance Receiver-Amplifier; Zenith Radio Corp.; (ID = 376521) Radio 4-R Long Distance Receiver-Amplifier; Zenith Radio Corp.; (ID = 376522) Radio
4-R Long Distance Receiver-Amplifier; Zenith Radio Corp.; (ID = 376523) Radio 4-R Long Distance Receiver-Amplifier; Zenith Radio Corp.; (ID = 376525) Radio

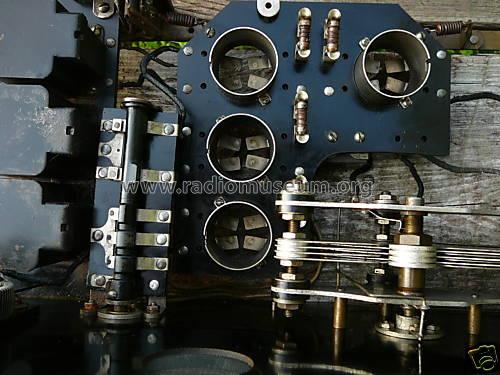

4-R Long Distance Receiver-Amplifier; Zenith Radio Corp.; (ID = 647650) Radio 4-R Long Distance Receiver-Amplifier; Zenith Radio Corp.; (ID = 647652) Radio
4-R Long Distance Receiver-Amplifier; Zenith Radio Corp.; (ID = 647653) Radio 4-R Long Distance Receiver-Amplifier; Zenith Radio Corp.; (ID = 647654) Radio
Use red slider bar for more.
4-R Long Distance Receiver-Amplifier; Zenith Radio Corp.; (ID = 2356612) Radio
Zenith Radio Corp.;: 4-R Long Distance Receiver-Amplifier [Radio] ID = 2356612 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model 4-R Long Distance Receiver-Amplifier early (with porthole), Zenith Radio Corp.; Chicago, IL:
Collection privée (réf.: 2377)

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1923 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UV201A UV201A UV201A UV201A
Main principle TRF with regeneration; 3 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: 4-R Long Distance Receiver-Amplifier [early ] - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 21.7 x 9 x 10 inch / 551 x 229 x 254 mm
Notes The Zenith model 4-R, still made by Chicago Radio Laboratory, has a porthole in the front panel. The late version has none.
Net weight (2.2 lb = 1 kg) 8.1 kg / 17 lb 13.5 oz (17.841 lb)
Price in first year of sale 85.00 $
External source of data Konrad Birkner
Source of data Radio Collector`s Guide 1921-1932
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (1) Radio Manufacturers of the 1920's, Vol. 3 (Zenith Radio, The Early Years 1919-1935 by Cones / Briant)
Literature/Schematics (2) Radio Broadcast, June 1924


All listed radios etc. from Zenith Radio Corp.; Chicago, IL
Here you find 4264 models, 3890 with images and 3381 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Zenith Radio Corp.;: 4-R Long Distance Receiver-Amplifier
Threads: 1 | Posts: 1
Hits: 1592     Replies: 0
chicago-ra: Chicago Radio Labs, Zenith
Reinhard Bittner
18.Mar.04
  1 Die später als Zenith Corp. bekannt und auch richtig groß gewordene Firma begann 1921 mit dem Radiobau, damals unter dem Namen "Chicago Radio Labs". Die ersten "Serien"-Geräte (ab 1922) hießen R1 (1-Röhren Audion), R2 (2-Röhren NF Verstärker), R3 (4-Röhren TRF) und R4 (4-Röhren TRF). Zumindest von letzteren beiden existieren mehrere Varianten. Der R3 und der R4 trugen zusätzlich zum damaligen Markennamen außerdem die Aufschrift "Zenith". Der R4 war der letzte Zenith, auf dem auch noch "Chicago Radio Labs" stand. 1925 firmierte Chicago Radio Labs offiziell in Zenith um.

Alle frühen Zeniths haben das Problem, daß die gesamte Mechanik aus Zinkguß bestand (am.: pot metal) und die Achsen der Einstellelemente praktisch immer festsitzen. Gewaltanwendung führt zwingend zum Bruch der Achse und oft auch zum Reißen des Frontpanels.
