• Country
• Germany

• Manufacturer / Brand
• Clamann & Grahnert; Dresden

• Year
• 1959–1961 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 242443

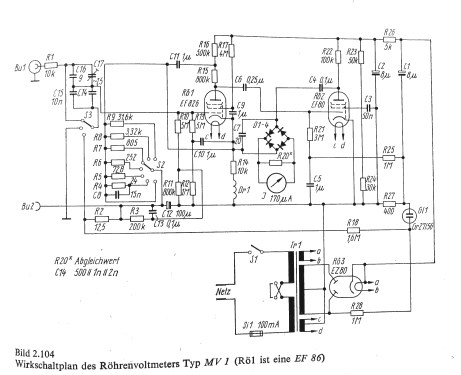

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• EF86 EF80 EZ80

• Wave bands
• - without

• Power type and voltage
• 110/220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

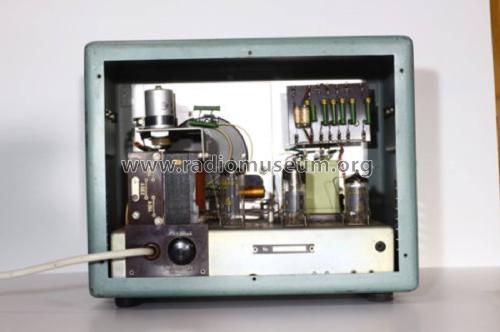

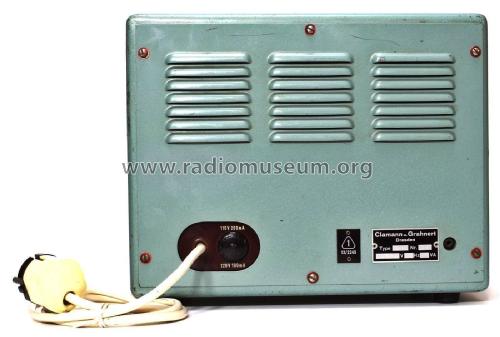

• Model: Röhrenvoltmeter MV1 [mit Rö. EF86] - Clamann & Grahnert; Dresden

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 280 x 230 x 190 mm / 11 x 9.1 x 7.5 inch

• Notes

• Modell Röhrenvoltmeter MV1 mit EF12 schon vorhanden.
  Hier ist nur anderer Röhrensatz, sonst gleichartig.

• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• Price in first year of sale
• 1,248.00 Mark

• Mentioned in
• Angebotsliste 1963 "Mess- und Prüfgeräte"

• Author
• Model page created by Klaus Bayer. See "Data change" for further contributors.
