5S-5

5S-5; Clarion Co., Ltd.; (ID = 2037929) Radio
5S-5; Clarion Co., Ltd.; (ID = 233912) Radio 5S-5; Clarion Co., Ltd.; (ID = 233915) Radio
Use red slider bar for more.

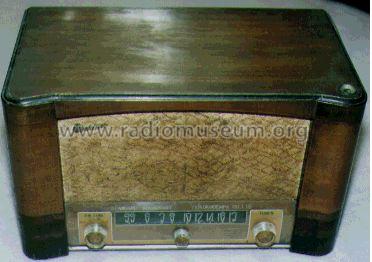

5S-5; Clarion Co., Ltd.; (ID = 233912) Radio
Clarion Co., Ltd.;: 5S-5 [Radio] ID = 233912 372x262
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5S-5, Clarion Co., Ltd.; Tokyo:
Dank an K. Hayashi, Japan.

Country:  Japan
Manufacturer / Brand:  Clarion Co., Ltd.; Tokyo
Year: 1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6W-C5 UZ-6D6 6Z-DH3A UZ-42 KX-80
Main principle Superheterodyne (common); 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 85/100 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: 5S-5 - Clarion Co., Ltd.; Tokyo
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 444 x 267 x 249 mm / 17.5 x 10.5 x 9.8 inch
External source of data K. Hayashi
Source of data -- Collector info (Sammler)

Model page created by Berthold Bosch † 13.2.19. See "Data change" for further contributors.
