• Country
• Spain

• Manufacturer / Brand
• Clarión; Barcelona

• Year
• 1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 94658

• Number of Tubes
• 5

• Valves / Tubes
• ECH42 EAF42 EAF42 EL41 AZ41

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Line (AC, UC or DC not known) / 125 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Power out
• 3.9 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

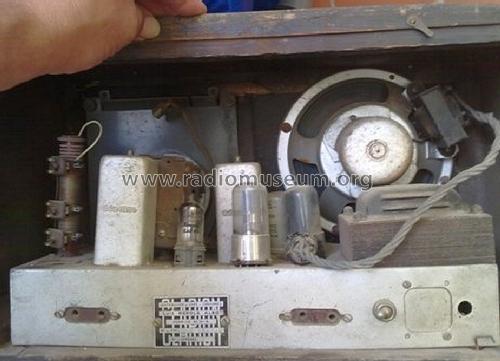

• Model: RA-33-D - Clarión; Barcelona

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 440 x 250 x 210 mm / 17.3 x 9.8 x 8.3 inch

• Notes

• 5 válvulas rimlock

  Entrada Fono



  Gama de frecuencias:

  OM: 200m-550m

  OC1: 13m - 30m

  OC2: 30m - 52m

• Price in first year of sale
• 2,105.00 ESP

• Literature/Schematics (4)
• Anuncio La Vanguardia Española abril 1950

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
