• Country
• Spain

• Manufacturer / Brand
• Clarivisión, Balada Molero y Cia; Barcelona

• Year
• 1950 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 354976

• Number of Tubes
• 4

• Valves / Tubes
• ECH3 ECF1 CBL6 CY2

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 cm = 3.9 inch

• Material
• Metal case

• from Radiomuseum.org

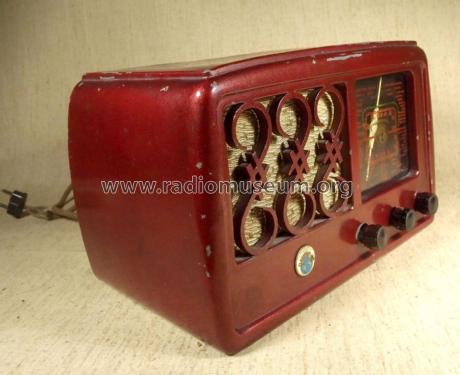

• Model: Rosamunda A1 - Clarivisión, Balada Molero y

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 280 x 175 x 160 mm / 11 x 6.9 x 6.3 inch

• Notes

• Clarivisión (Balada, Molero y Cía.), modelo Rosamunda A1

• Net weight (2.2 lb = 1 kg)
• 4.5 kg / 9 lb 14.6 oz (9.912 lb)

• Author
• Model page created by J. Enrique Bejarano-Conejo. See "Data change" for further contributors.
