- Country
- United States of America (USA)
- Manufacturer / Brand
- Clinton Mfg.Co.; Chicago, IL
- Year
- 1938 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 265719
Pictures modified and edited from seller.
Back picture from seller with modifications
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 110 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 19SQ - Clinton Mfg.Co.; Chicago, IL
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 16.5 x 9 x 7 inch / 419 x 229 x 178 mm
- Notes
-
The Clinton 19SQ radio has four ballast tubes and a rectifier tube that doubles the voltage, The ballast tubes function like a transformer.
- Author
- Model page created by Joseph Gates. See "Data change" for further contributors.
- Other Models
-
Here you find 135 models, 81 with images and 47 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Clinton Mfg.Co.; Chicago, IL
Forum contributions about this model: Clinton Mfg.Co.;: 19SQ
Threads: 1 | Posts: 3
Hello,

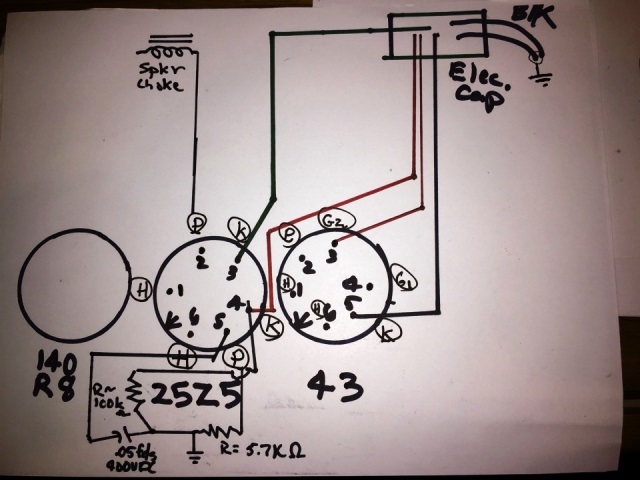

I am having a difficult time identifying (without a schematic) the number of capacitors wrapped up in this rectangular box on the top of the chassis.
There are 6 wires coming out of it and I've identified that there are at least 2 separate caps.
What I need help with is: are there more than 2 caps
What are the possible values for these
I've enclosed some pictures!
Thanks for your consideration!
Attachments
- Circuit Web (88 KB)
- 2015-02-24 19.52.20 (127 KB)
Joseph Gates, 03.Mar.15
