234B-SW (234BSW)
Clinton Mfg.Co.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Clinton Mfg.Co.; Chicago, IL
- Year
- 1935 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 299578
A rear view of the chassis
A the front of the chassis

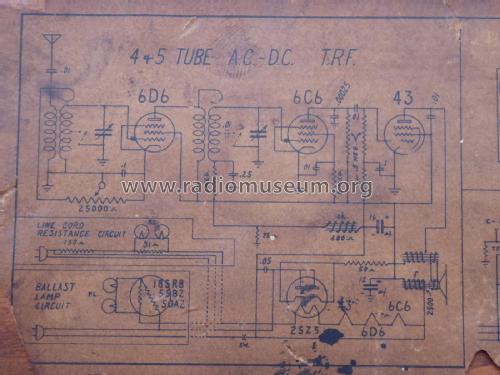

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- TRF without regeneration; 1 AF stage(s)
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 234B-SW - Clinton Mfg.Co.; Chicago, IL
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 10.75 x 8 x 6.6 inch / 273 x 203 x 168 mm
- Notes
-
The model number is written in pencil on the bottom of the set. It is similar to other Clinton 200 series models. It appears to share the same chassis as the Clinton Marshall Unknown 2.
- Author
- Model page created by Steven Sostrom. See "Data change" for further contributors.
