• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Cromwell, Gulbransen (NZ), Pacemaker, (Brands) Clarke, H. W.; Wellington

• Year
• 1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 334391

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2N247 2N412 OC71 OC71 OC72 OC72 OA85

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 4 inch = 10.2 cm

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

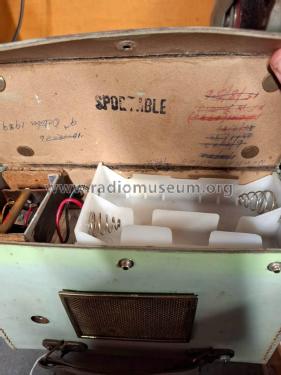

• Model: Pacemaker Sportable - Cromwell, Gulbransen NZ,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 220 x 150 x 90 mm / 8.7 x 5.9 x 3.5 inch

• Notes

• 6 transistor superhet and push-pull audio output.

  Smaller model from the Transportable series of transistor radios by Collier & Beale

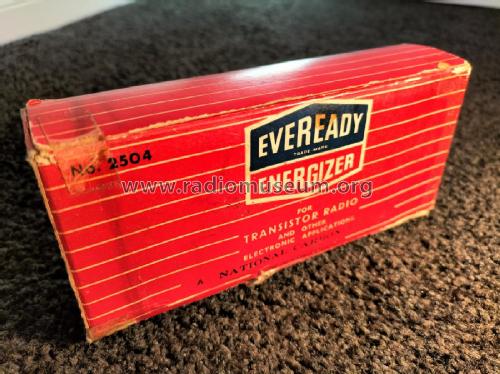

  Battery Eveready 2504

• Price in first year of sale
• 29.85 NZ Pound

• Mentioned in
• -- Original prospect or advert (Press 16 September 1960 Page 18)

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
