• Country
• United States of America (USA)

• Manufacturer / Brand
• Collins Radio Company; Cedar Rapids (IA)

• Year
• 1962

• Category
• Amateur Transmitter (only)

• Radiomuseum.org ID
• 150515

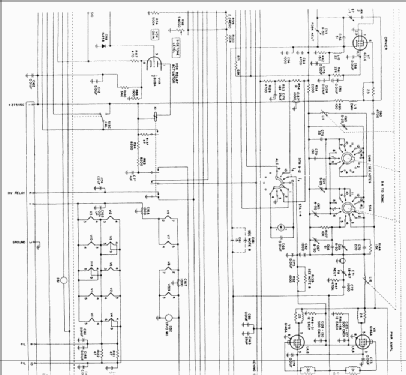

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 14

• Valves / Tubes
• 6DC6 6AU6 6U8 12AT7 12AT7 6AH6 6CL6 6146 6146 12AT7 6U8A 6U8A 6DC6 6U8 0A2

• Main principle
• Transmitter

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Powered by external power supply or a main unit. / 115 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: 32S-3 - Collins Radio Company; Cedar

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 369 x 169 x 296 mm / 14.5 x 6.7 x 11.7 inch

• Notes

• Collins 32S-3 CW / USB / LSB transmitter: covers 80 / 40 / 20 / 15 / 10 m ham bands and can be tuned to any frequency in the 3,4 - 30 MHz excepted 5,0 - 6,5 MHz. 100 watts PEP output.
  Needs external power supply.
  Can be used to excite Collins 30L-1 or 30S-1 linear amplifiers. Matching receiver Collins 75S-3.

  Price $750 (QST 1963).

• Net weight (2.2 lb = 1 kg)
• 16 lb (16 lb 0 oz) / 7.264 kg

• Price in first year of sale
• 4,214.00 DM

• Mentioned in
• QST (February 1963 pages 46-48)

• Literature/Schematics (1)
• Katalog Hannes Bauer, 1966–1973

• Author
• Model page created by a member from D. See "Data change" for further contributors.
