- Country
- Spain
- Manufacturer / Brand
- Comercial Radio Bertrán; Electrónica Bertrán; ELBE; Barcelona
- Year
- 1972 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 298131

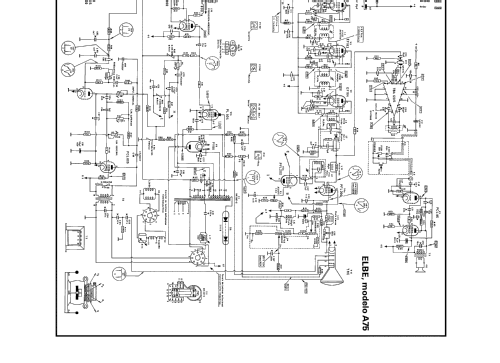

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Number of Transistors
- 1
- Main principle
- Superheterodyne (common); ZF/IF 38900 kHz
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 125; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: ELBE A-75 - Comercial Radio Bertrán;
- Shape
- Tablemodel, low profile (big size).
- Notes
-
TV B/N con selector rotativo de VHF y sintonizador transistorizado de UHF.
No se cuentan ni se listan los semiconductores del sintonizador UHF por desconocerse.
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
