• Country
• France

• Manufacturer / Brand
• Comptoirs Championnet; Paris

• Year
• 1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 137892

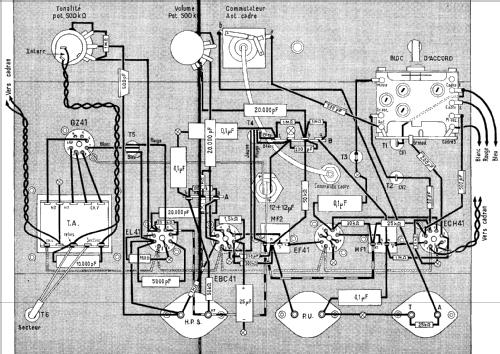

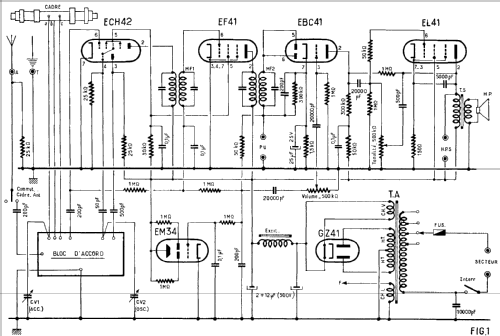

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH42 EF41 EBC41 EL41 EM34 GZ41

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110 - 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 17 cm = 6.7 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Frégate Orient 56 - Comptoirs Championnet; Paris

• Dimensions (WHD)
• 380 x 260 x 210 mm / 15 x 10.2 x 8.3 inch

• Notes
• 2 OC dont une bande étalée, cadre orientable incorporé, existe sans cadre incorporé et avec une ébénisterie 4 boutons au lieu de 5.

• Author
• Model page created by Raynal Aufils. See "Data change" for further contributors.

• Other Models

• Here you find 61 models, 58 with images and 22 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
