Autoradio ; Condor Ing. Gallo; (ID = 255945) Car Radio
Use red slider bar for more.
Autoradio ; Condor Ing. Gallo; (ID = 255945) Car Radio
Select picture or schematic to display from thumbnails on the right and click for download.
Country:  Italy
Manufacturer / Brand:  Condor (Ing. Gallo); Milano
Year: 1936/1937 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 5: 77 78 78 75 41
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Power type and voltage Storage and/or dry batteries / 6/12 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Model: Autoradio - Condor Ing. Gallo; Milano
Material Metal case

Ricevitore autoradio

Dinamotore per la tensione anodica.
Funzionamento a 6 o 12 V ottenuto con la modifica dei collegamenti delle valvole.

Source of data Guida Pratica Antique Radio (1) 1999

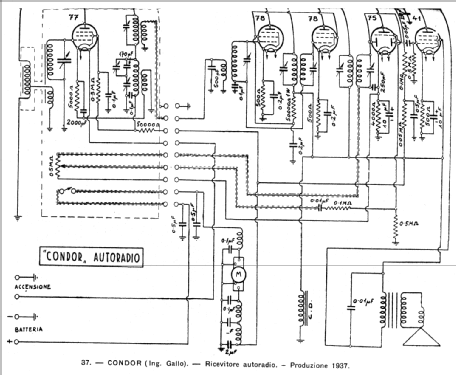

Literature/Schematics (1) Il Radio Libro (E.D. Ravalico) Edizioni Hoepli

Model page created by Alessandro De Poi. See "Data change" for further contributors.
