Pullmann 10W 2114-T

Pullmann 10W 2114-T; Condor Ing. Gallo; (ID = 960656) Car Radio

Pullmann 10W 2114-T; Condor Ing. Gallo; (ID = 960657) Car Radio

Pullmann 10W 2114-T; Condor Ing. Gallo; (ID = 2465589) Car Radio

Pullmann 10W 2114-T; Condor Ing. Gallo; (ID = 2465590) Car Radio
Use red slider bar for more.
Pullmann 10W 2114-T; Condor Ing. Gallo; (ID = 960656) Car Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Italy
Manufacturer / Brand:  Condor (Ing. Gallo); Milano
Year: 1956 ?? Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 5: ECH81 EAF42 ECC81 EL84 EL84
Main principle Superheterodyne (common); ZF/IF 470 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12; 24 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Pullmann 10W 2114-T - Condor Ing. Gallo; Milano
Shape Chassis only or for «building in»

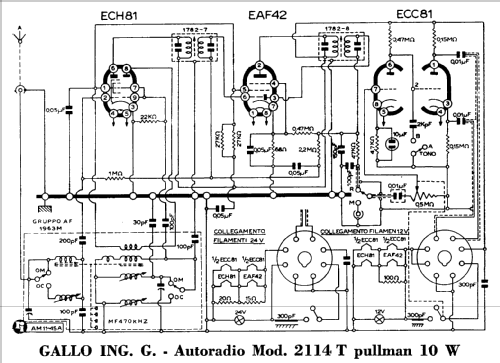

Mentioned in -- Schematic (D.E. Ravalico, Il Radiolibro, 16° edizione, 1957, Hoepli)
Literature/Schematics (1) Il Manuale del Radiomeccanico (Vol.3°)

Model page created by Eduard Abfalterer. See "Data change" for further contributors.



All listed radios etc. from Condor (Ing. Gallo); Milano
Here you find 101 models, 64 with images and 66 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
