T5

T5; Condor Ing. Gallo; (ID = 947810) Car Radio

T5; Condor Ing. Gallo; (ID = 1437189) Car Radio

T5; Condor Ing. Gallo; (ID = 2465587) Car Radio
T5; Condor Ing. Gallo; (ID = 1252534) Car Radio
Use red slider bar for more.
T5; Condor Ing. Gallo; (ID = 1252534) Car Radio
Condor Ing. Gallo;: T5 [Car Radio] ID = 1252534 586x302
Select picture or schematic to display from thumbnails on the right and click for download.
For model T5, Condor (Ing. Gallo); Milano:
Autoradio Condor T5. Catalogo ANIE

Country:  Italy
Manufacturer / Brand:  Condor (Ing. Gallo); Milano
Year: 1955/1956 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 4: ECH81 EF41 EBC41 EL84
Main principle Superheterodyne (common)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6/12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 3 W (unknown quality)
from Radiomuseum.org Model: T5 - Condor Ing. Gallo; Milano
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 170 x 73 x 147 mm / 6.7 x 2.9 x 5.8 inch
Notes Mobile in lamiera e plastica in 3 pezzi. Mobile in lamiera e plastica in 3 pezzi (sintonizzatore, alimentatore, altoparlante). Sintonia predisposta a 4 comandi (meccanici). Regolatore di tono.
Net weight (2.2 lb = 1 kg) 5.5 kg / 12 lb 1.8 oz (12.115 lb)
Price in first year of sale 48'600.00 ITL
Source of data Guida Pratica Antique Radio III (2000)
Mentioned in Catalogo ANIE (1955-56)

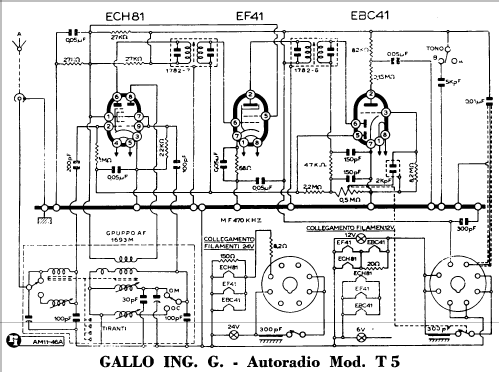

Literature/Schematics (1) -- Schematic (D.E. Ravalico, Il Radiolibro, 16° edizione, 1957, Hoepli)

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Condor (Ing. Gallo); Milano
Here you find 101 models, 64 with images and 66 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
