Ultra-Plat II

Ultra-Plat II ; Condor Ing. Gallo; (ID = 947820) Car Radio

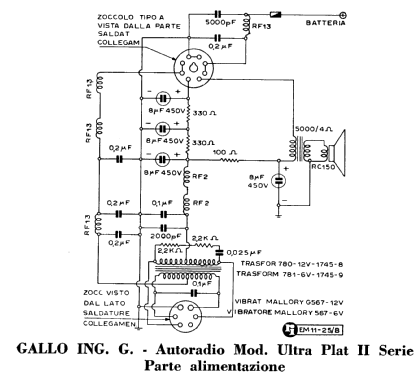

Ultra-Plat II ; Condor Ing. Gallo; (ID = 947821) Car Radio
Use red slider bar for more.
Ultra-Plat II ; Condor Ing. Gallo; (ID = 947820) Car Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Italy
Manufacturer / Brand:  Condor (Ing. Gallo); Milano
Year: 1952/1953 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 4: ECH42 EF41 EBC41 EL41
Main principle Superheterodyne (common)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6/12 Volt
Loudspeaker Presumably Dynamic Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Ultra-Plat II - Condor Ing. Gallo; Milano
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 160 x 40 x 160 mm / 6.3 x 1.6 x 6.3 inch
Notes Dimensioni cassettina alimentatore + altoparlante: 16 x 16 x 8 cm.
Source of data Guida Pratica Antique Radio III (2000)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
